Year: 2000
Brand: GMM
Model: GIGA 3500

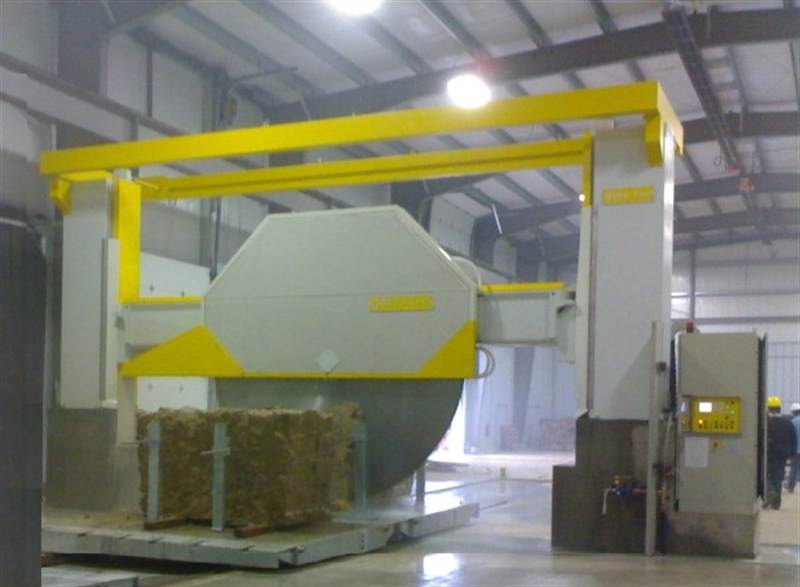

Automatic bridge saw for Marble and granite
Max allowable disc diameter: 3500 mm
Max cutting depth with max disc diameter 1500 mm
Max horizontal disc stroke: 4000 mm
Max vertical disc stroke: 2200 mm
Max stroke of the block trolley: 2800 mm
Dimensions of the trolley: 2200x3000 mm
Disc motor power Hp / kW 50/37,5
Overall dimensions 11.100x6100x5650 mm
Nr. 1 motorized trolley
